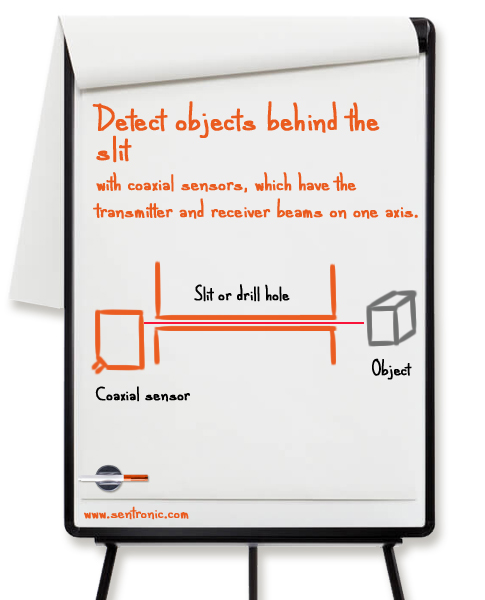

Solution for the detection of objects through holes, tubes, gaps
|
|
|
Mastering difficult space conditions
In difficult space conditions, one solution may be to detect the object in question through a gap some distance away. In such conditions, coaxial sensors are used, which can show their full potential for these situations. Since the emitter and receiver beams are on the same axis, the latter can also detect objects through holes and gaps.
This opens up completely new approaches to solutions! |
|
 |
|
|
|
|
| The advantages of this solution:
|
- The sensor can also detect the object somewhat remotely through a hole or gap in difficult space conditions.
- Very small light spot
- Very small close range
|
|
 |
|
|
What can be used? |
Our coaxial sensors
|
|
Our power supplies
|
 |
|
 |
|
|
|
|
|

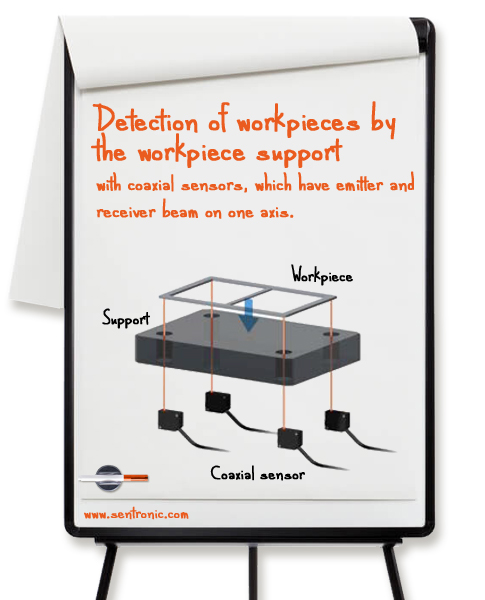

Reliable detection for increasing automation
Reliability plays a major role in automation. The more individual steps in a process can be monitored, the fewer errors occur. Coaxial sensors can be used to detect the correct position of the workpiece through the workpiece support. This ensures, for example, that the robot has placed the workpiece correctly. Since the sensors can be mounted under the support, they also do not get in the way during the process.
Since the transmitter and receiver beams are on the same axis, the sensor can also detect objects through long holes. |
|
 |
|
|
|
|
| The advantages of this solution:
|
- Reliably detects whether the robot has placed the workpiece correctly, for example. Holes in the support are used for this purpose, through which the sensor can detect the workpiece.
- Very small light spot
- Very small close range
|
|
|
|
|
What can be used? |
Our coaxial sensors
|
|
Our power supplies |
|
|
|
|
|
|
|
Simple solutions are often the best solutions. This is about food for thought, ideas and possibilities. Our technicians are happy to discuss your concerns via LiveCall, chat, email or telephone.
The basic ideas shown here can be rebuilt or extended according to your needs! |
 |
